Product introduction:

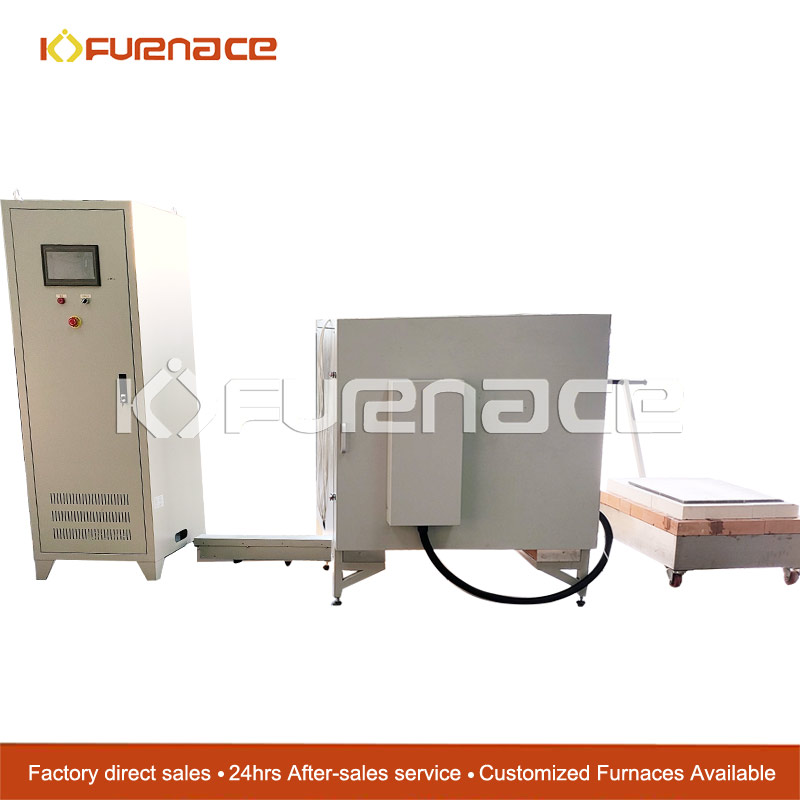

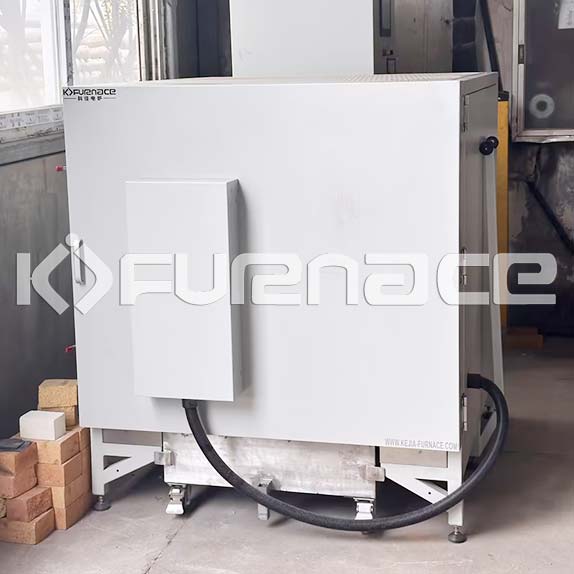

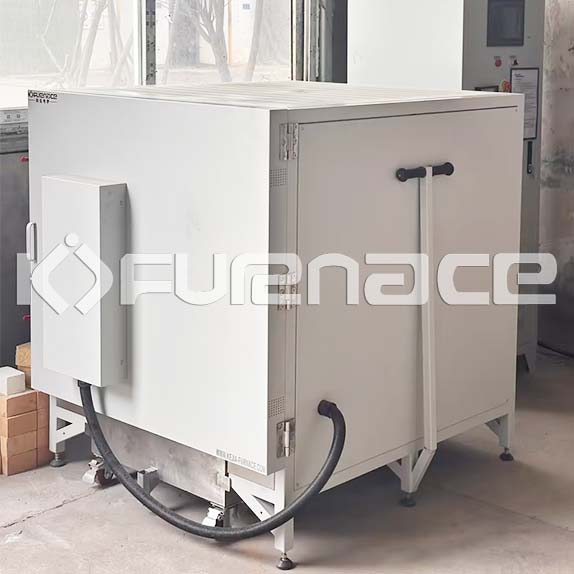

This equipment is a bogie hearth furnace, specifically designed for the heat treatment of small to medium-sized workpieces, featuring a compact structure and convenient operation.
Regarding core performance parameters, the effective working area dimensions are 500×500×500mm (width × height × depth), employing a 2-temperature zone design for a more uniform temperature field, achieving a working area temperature uniformity of ±10℃. The maximum temperature is 1200℃, with a long-term stable operating temperature of 1100℃, making it suitable for various high-temperature heat treatment processes. The heating power is approximately 40KW, powered by a 380V three-phase 50Hz power supply, providing ample power support for stable operation (loading capacity parameters to be added).
In terms of structure and configuration, both the furnace frame and inner liner are made of carbon steel, ensuring furnace strength and high-temperature resistance. The furnace door features a front-opening design and is manually operated, making operation simple and intuitive. The heating elements are external resistance wires, arranged on all four sides (front, back, left, and right) to ensure even heat distribution. The insulation system uses polycrystalline alumina fiber, effectively reducing heat loss and improving insulation performance. The furnace bottom is lined with silicon carbide plates, and materials can be manually removed from the furnace bottom with the door open, facilitating workpiece loading and unloading.
The electrical control system is well-configured, equipped with an independent distribution cabinet to ensure circuit safety and stability. A 10-inch touchscreen is used as the controller, with a clear and user-friendly interface for easy parameter setting and process monitoring. The temperature measurement system uses three thermocouples: two N-type thermocouples for temperature control and two N-type armored thermocouples specifically for measuring surface temperature, enabling precise monitoring and control of both the furnace interior and workpiece temperatures.
Application:
This equipment is specifically designed for material sintering, heat treatment, and material analysis and testing, such as sintering of ceramic materials, magnetic materials, powder metallurgy materials, rare earth materials, and precious metal materials, as well as heat treatment of various metal materials, including annealing and tempering.
Technical parameters：
This equipment is a bogie hearth furnace, specifically designed for the heat treatment of small to medium-sized workpieces, featuring a compact structure and convenient operation.
Regarding core performance parameters, the effective working area dimensions are 500×500×500mm (width × height × depth), employing a 2-temperature zone design for a more uniform temperature field, achieving a working area temperature uniformity of ±10℃. The maximum temperature is 1200℃, with a long-term stable operating temperature of 1100℃, making it suitable for various high-temperature heat treatment processes. The heating power is approximately 40KW, powered by a 380V three-phase 50Hz power supply, providing ample power support for stable operation (loading capacity parameters to be added).
In terms of structure and configuration, both the furnace frame and inner liner are made of carbon steel, ensuring furnace strength and high-temperature resistance. The furnace door features a front-opening design and is manually operated, making operation simple and intuitive. The heating elements are external resistance wires, arranged on all four sides (front, back, left, and right) to ensure even heat distribution. The insulation system uses polycrystalline alumina fiber, effectively reducing heat loss and improving insulation performance. The furnace bottom is lined with silicon carbide plates, and materials can be manually removed from the furnace bottom with the door open, facilitating workpiece loading and unloading.
The electrical control system is well-configured, equipped with an independent distribution cabinet to ensure circuit safety and stability. A 10-inch touchscreen is used as the controller, with a clear and user-friendly interface for easy parameter setting and process monitoring. The temperature measurement system uses three thermocouples: two N-type thermocouples for temperature control and two N-type armored thermocouples specifically for measuring surface temperature, enabling precise monitoring and control of both the furnace interior and workpiece temperatures.
Application:
This equipment is specifically designed for material sintering, heat treatment, and material analysis and testing, such as sintering of ceramic materials, magnetic materials, powder metallurgy materials, rare earth materials, and precious metal materials, as well as heat treatment of various metal materials, including annealing and tempering.
Technical parameters：
| Product name | Manual Trolley Furnace |
| Electrical control cabinet | Independent electrical control cabinet |
| Model | KJ-MT1100-125CZ |
| Max.temperature | 1200 °C |
| Working temperature | 1100 °C |
| Zone numbers | 2 Temperature zone |
| Effective working area size | 500*500*500mm(Width * Height * Depth) |
| Temperature uniformity in the effective working area | ±10℃ (Acceptance testing of temperature uniformity is conducted at 580℃ and 1100℃, and temperature is measured at five points within the effective working area of the furnace.) |
| Chamber material | alumina polycrystalline fibers |
| Furnace door opening method |
Front-opening door, manually operated. After the furnace door is opened, the furnace bottom, along with the material, must be manually removed. |
| furnace bottom | Bottom brick lining + silicon carbide firing plate |
| Furnace body structure | Double-layer furnace shell |
| Heating rate | 0-10℃ |
| Temperature control thermocouple | Two N-type temperature controllers, and two N-armored monitoring thermocouples (for measuring object surface temperature). |
| Heating element | External resistance wire |
| 电源 | 380V 三相 50Hz |
| 控温系统 |
温度控制系统采用 10 寸触屏操作，人工智能调节技术，具有 PID 调节、 自整定功能并可编制 多段升降温程序； 1、采用PID 方式调节控温，可设置多段升降温程序 2、控温精度±1。C 3、具有过温保护 断偶保护过温或断偶时电炉加热电路自动切断。 4、仪表具有温度自整定的功能 5、采用触屏操作，升降温数据可记录，可输出可存储 |
| 包装 | 木箱 |
| 运输 | 物流,送货上门(不含上楼) |
| 质保 |
自发货之日起 15 个月或验收合格 12 个月（以先到者为准），易损件及人为损坏不在质保范围 |
